NumPy Broadcasting for Array Operations

Comprehensive Guide to NumPy Broadcasting in Python

NumPy broadcasting enables operations on arrays with different shapes by automatically expanding smaller arrays to match the dimensions of larger ones. It simplifies code, reduces memory usage, and eliminates the need for explicit replication of data. Broadcasting is a cornerstone of NumPy’s efficiency in handling array operations.

How Broadcasting Works:

When operating on two arrays, NumPy compares their shapes element-wise, starting from the trailing dimensions. Two dimensions are compatible if:

1. They are equal, or

2. One of them is 1.

If compatibility conditions are met, NumPy "broadcasts" the smaller array to match the shape of the larger array.

Examples:

Example 1: Adding a Scalar to an Array

Code:

import numpy as np

# Define a 1D array
array = np.array([1, 2, 3])

# Add a scalar to the array
result = array + 5

# Print the result
print("Result of broadcasting a scalar:\n", result)

Output:

Result of broadcasting a scalar:
 [6 7 8]

Explanation:

The scalar 5 is broadcast across each element of the array, resulting in element-wise addition.

Example 2: Adding Two Arrays of Different Shapes

Code:

import numpy as np

# Define a 2D array
array_2d = np.array([[1, 2, 3], [4, 5, 6]])

# Define a 1D array
array_1d = np.array([10, 20, 30])

# Add the two arrays
result = array_2d + array_1d

# Print the result
print("Result of broadcasting arrays:\n", result)

Output:

Result of broadcasting a scalar:
 [6 7 8]

Explanation:

The 1D array [10, 20, 30] is broadcast along the rows of the 2D array, resulting in element-wise addition.

Example 3: Broadcasting with Different Dimensions

Code:

import numpy as np

# Define a 1D array
array_1d = np.array([1, 2, 3])

# Define a column vector (2D array)
column_vector = np.array([[10], [20]])

# Perform broadcasting
result = column_vector + array_1d

# Print the result
print("Result of broadcasting different dimensions:\n", result)

Output:

Result of broadcasting different dimensions:
 [[11 12 13]
 [21 22 23]]

Explanation:

• The array_1d is reshaped to match the dimensions of column_vector.
• Broadcasting aligns the dimensions to perform element-wise addition.

Example 4: Multiplication in Broadcasting

Code:

import numpy as np

# Define a 2D array
matrix = np.array([[1, 2], [3, 4]])

# Define a row vector
vector = np.array([10, 20])

# Perform multiplication
result = matrix * vector

# Print the result
print("Result of broadcasting multiplication:\n", result)

Output:

Result of broadcasting multiplication:
 [[10 40]
 [30 80]]

Explanation:

The vector [10, 20] is broadcast to match the shape of the matrix, and element-wise multiplication is performed.

Important Notes:

1. Shape Compatibility: Broadcasting requires compatible shapes. For example, (3, 1) can broadcast with (1, 4) to result in (3, 4).

2. Memory Efficiency: Broadcasting avoids memory overhead by not explicitly copying smaller arrays.

3. Errors in Broadcasting: If shapes are incompatible, NumPy raises a ValueError.

Example 5: Error in Broadcasting

Code:

import numpy as np

# Define two incompatible arrays
array_1 = np.array([1, 2, 3])
array_2 = np.array([[1, 2], [3, 4]])

# Attempt an operation
try:
    result = array_1 + array_2
except ValueError as e:
    print("Broadcasting Error:", e)

Output:

Broadcasting Error: operands could not be broadcast together

Explanation:

Here, the shapes (3,) and (2, 2) are incompatible, resulting in a ValueError.

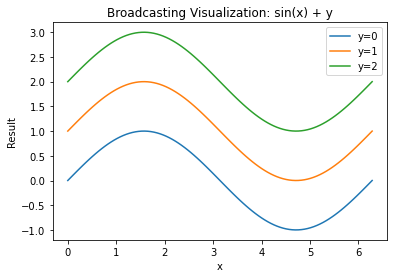

Visualizing Broadcasting:

Using a visualization tool like Matplotlib can help understand how broadcasting aligns arrays.

Code:

import numpy as np
import matplotlib.pyplot as plt

# Define a 1D array
x = np.linspace(0, 2 * np.pi, 100)

# Define a column vector
y = np.array([[0], [1], [2]])

# Compute broadcasting
z = np.sin(x) + y

# Plot the result
plt.plot(x, z.T)  # Transpose to align rows for plotting
plt.title("Broadcasting Visualization: sin(x) + y")
plt.xlabel("x")
plt.ylabel("Result")
plt.legend(["y=0", "y=1", "y=2"])
plt.show()

Output:
